Aluminum 250 Paintball Mold Die Roll With Wedge Distribute Plate
Timing Gear

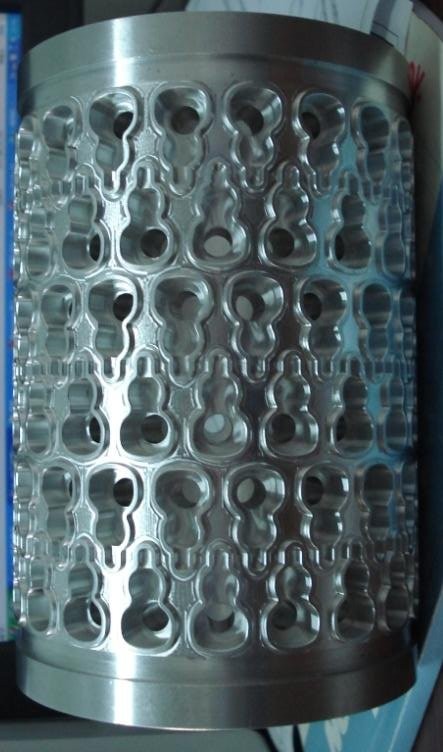

Ø 150 X 250mm Capsule Mold / Paintball Die Roll With Wedge ,
Distribute Plate & Gear
Quick Detail
Product Name | Large Die roll for softgel and paintball | Model | Ø 150 X 250 |
Place of Origin | Beijing, China(Main land) | Material | Aluminium alloy |
Die roll Speed | 0~5 rpm |
|
|
Product Description
The paintball die rolls are widely used for paintball making
enterprises and pharmaceutical enterprises. It can make round and
beautiful paintballs according to customers’ requirements. The raw
material of die roll is imported aircraft grade aluminium alloy
which has very good strength and tension. Its tension degree can
get to 570 MPa and 150 Brinell hardness. Using the imported
aircraft grade aluminium alloy can significantly prolong the life
of dies. Besides, users can largely reduce the using cost because
there are usually four times to repair during its life cycle.
After processing these dies roll, technologists will make special
surface treatment technology so as to further improve the mold
surface hardness and corrosion resistance. In designing softgel die
rolls, we strongly absorbed much experience from home and abroad to
make better die rolls which can reduce the leakage and net rate and
improve the stability of the soft capsule and paintball production.
The material can be avation Al and Brass, the wedge can be with
water heating and electric heating ,We also manufacturing the Al
injection for the paintball production .
Application
It’s widely used for softgel and paintball making enterprises and
pharmaceutical enterprises, including cosmetic manufacturing
company and health products manufacturing company and nutrition
foods manufacturing.
Specification
Model | Ø150X250 |
Die roll diameter(mm) | Ø150 |
Die roll length(mm) | 250 |
Die roll speed | 0-5rpm |
Plunger Qty. | 20 |
Machine Overall Dimension(mm) | 2050×1200×1850mm |
Machine Weight(kg) | 1900kg |
Machine Power(kw) | 20kw |
Control | PLC.touch screen |
Competitive Advantage
1. Widely used for softgel and paintball making enterprises and
pharmaceutical enterprises
2. The raw material is imported aircraft grade aluminium alloy
3.product: Metal: Aluminium, copperproduct: Metal: Aluminium, copper
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale
production
Soft capsule die roll, softgel mold, softgel die roller and
paintball die roll, paintball mold.
Welcome to inquire!
