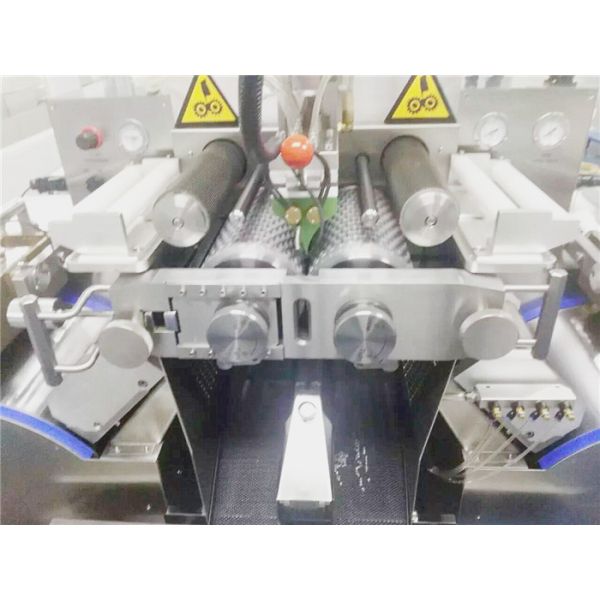

Pharmaceutical Softgel Encapsulaton Machine For Making Fish Oil /
120000 Pcs / H Max
Quick Detail
Product Name | softgel automatic machine | Driven Type | Electric |
Brand Name | KUN YOU | Material | Stainless Steel |
Application | Food , Pharmaceutical,softgel making machine | Capsule shape | OV, OB,etc |
Production Description
Our company is a professional supplier for softgel making machine
and paintball making machine. Our softgel making machine is divided
into three models, small model, medium model and large model. For
small scale softgel production, our S403 R&D softgel making
machine maybe fit for your requirements, it can produce about 20000
pcs softgels per hour. And S406 Softgel Encapsulation Machine is
suitable for medium scale production, its production rate can get
to 40000 pcs softgels per hour. The largest model, S610 Softgel
Encapsulation Machine can produce 120000 pcs softgels per hour. We
provide the whole line of softgel making, including the gelatin
melting system, fill material system, softgel encapsulation machine
and softgel drying machine. All the machine is made of high quality
stainless steel and spare parts from famous brands. And we adopt the gelatin ribbon micro lubrication system.
Applications:
It’s mainly for softgel and paintball making enterprises and
pharmaceutical enterprises, especially for R&D department of
laboratories, pharmaceutical factories in the universities and
plant health products and Research Institutes.It also can suitable
for cosmetic manufactures, such as bath beads and Collagen capsule.
Specification
Model | S403 | S406 | S407 | S610 |
Die roll diameter(mm) | 80 | 103 | 103 | 150 |
Die roll length(mm) | 100 | 152 | 172 | 250 |
Die roll speed | 0-5 | 0-5 | 0-7 | 0-5 |
Plunger Qty. | 6 | 10 | 12 | 20 |
Dimension | 1450×600×1350 | 880×640×1900 | 800×2200×2000 | 2050×1200×1850 |
Weight(kg) | 600 | 900 | 1200 | 1900 |
Power(kw) | 2kw | 7kw | 13kw | 20kw |
control | PLC.touch screen |
Detail;
Softgel making machine,Soft capsule making machine,Soft capsule
encapsulation machine,Softgel machine,Soft capsule manufacturing
machine
What is the specifications of Automatic softgel encapsulation
machine ?
1)According to client's sepcial requirements, provides the special
design such as oxgency pretection;
2)So many optional devices for clients to choose from R&D to
big scale production.
3)Easy to operate, adopt advanced PLC from Germany Siemens, mate
with touch and electric control system, the man-machine interface
is friendly.
4)Frequency conversion adjusts the speed: this machine uses
frequency conversion equipment, can be adjusted within the range
according to the needs of reality in production.
5)Automatic checking: with servo motor ,the machine can run at 7rpm
6)Safty device: Machine stop at abnormal air pressure, heater
disconnection alarm.
7)Main shaft parallelism is in 0.02mm
8)The die roll adjust and changment with clitch control ,save
gelatin and time, easily operate
8)Use the Germany bearing; .
9)The shaft of the 2 rollers for die roll deviation is in 1.5%.
10)With Worm gear, the gear and shaft adopt special material with
high accurary and long service life
11) Medicine hopper adopts thermial insulation design
12) Local language input in machine avaliable.
Product samples.
Softgel capsule with starch material
Shipment by sea by veneer boxes
